Load packages
library(scater)
library(scales)
library(viridis)Load sce
sce <- readRDS(file.path("output", "sce_TDP_01_preprocessing.rds"))We remove undetected genes and the doublets.
dim(sce)[1] 21587 83921sce <- sce[rowSums(counts(sce) > 0) > 0, ]
dim(sce)[1] 19741 83921# we remove the cells that were classified as doublets
sce <- sce[,sce$scDblFinder.class == "singlet"]
dim(sce)[1] 19741 73013Quality control
We compute cell-level QC.
(mito <- grep("MT-", rownames(sce), value = TRUE)) [1] "ENSG00000210049.MT-TF" "ENSG00000211459.MT-RNR1"
[3] "ENSG00000210077.MT-TV" "ENSG00000210082.MT-RNR2"
[5] "ENSG00000209082.MT-TL1" "ENSG00000198888.MT-ND1"
[7] "ENSG00000210100.MT-TI" "ENSG00000210107.MT-TQ"
[9] "ENSG00000210112.MT-TM" "ENSG00000198763.MT-ND2"
[11] "ENSG00000210117.MT-TW" "ENSG00000210127.MT-TA"
[13] "ENSG00000210135.MT-TN" "ENSG00000210140.MT-TC"
[15] "ENSG00000210144.MT-TY" "ENSG00000198804.MT-CO1"
[17] "ENSG00000210151.MT-TS1" "ENSG00000210154.MT-TD"
[19] "ENSG00000198712.MT-CO2" "ENSG00000210156.MT-TK"
[21] "ENSG00000228253.MT-ATP8" "ENSG00000198899.MT-ATP6"
[23] "ENSG00000198938.MT-CO3" "ENSG00000210164.MT-TG"
[25] "ENSG00000198840.MT-ND3" "ENSG00000210174.MT-TR"
[27] "ENSG00000212907.MT-ND4L" "ENSG00000198886.MT-ND4"
[29] "ENSG00000210176.MT-TH" "ENSG00000210184.MT-TS2"
[31] "ENSG00000210191.MT-TL2" "ENSG00000198786.MT-ND5"
[33] "ENSG00000198695.MT-ND6" "ENSG00000210194.MT-TE"
[35] "ENSG00000198727.MT-CYB" "ENSG00000210195.MT-TT"
[37] "ENSG00000210196.MT-TP" sce <- addPerCellQC(sce, subsets = list(Mt = mito))
# we compute the fraction of mitochondrial genes and the logit of it
sce$subsets_Mt_fraction <- (sce$subsets_Mt_percent + 0.001) /100
sce$subsets_Mt_fraction_logit <- qlogis(sce$subsets_Mt_fraction + 0.001)
# library size
summary(sce$sum) Min. 1st Qu. Median Mean 3rd Qu. Max.
500 1581 9255 12331 18719 118668 # number of detected genes per cell
summary(sce$detected) Min. 1st Qu. Median Mean 3rd Qu. Max.
41 956 3351 3216 4896 9786 # percentage of counts that come from mitochondrial genes:
summary(sce$subsets_Mt_percent) Min. 1st Qu. Median Mean 3rd Qu. Max.
0.000 3.047 5.022 6.703 7.819 98.577 Diagnostic plots

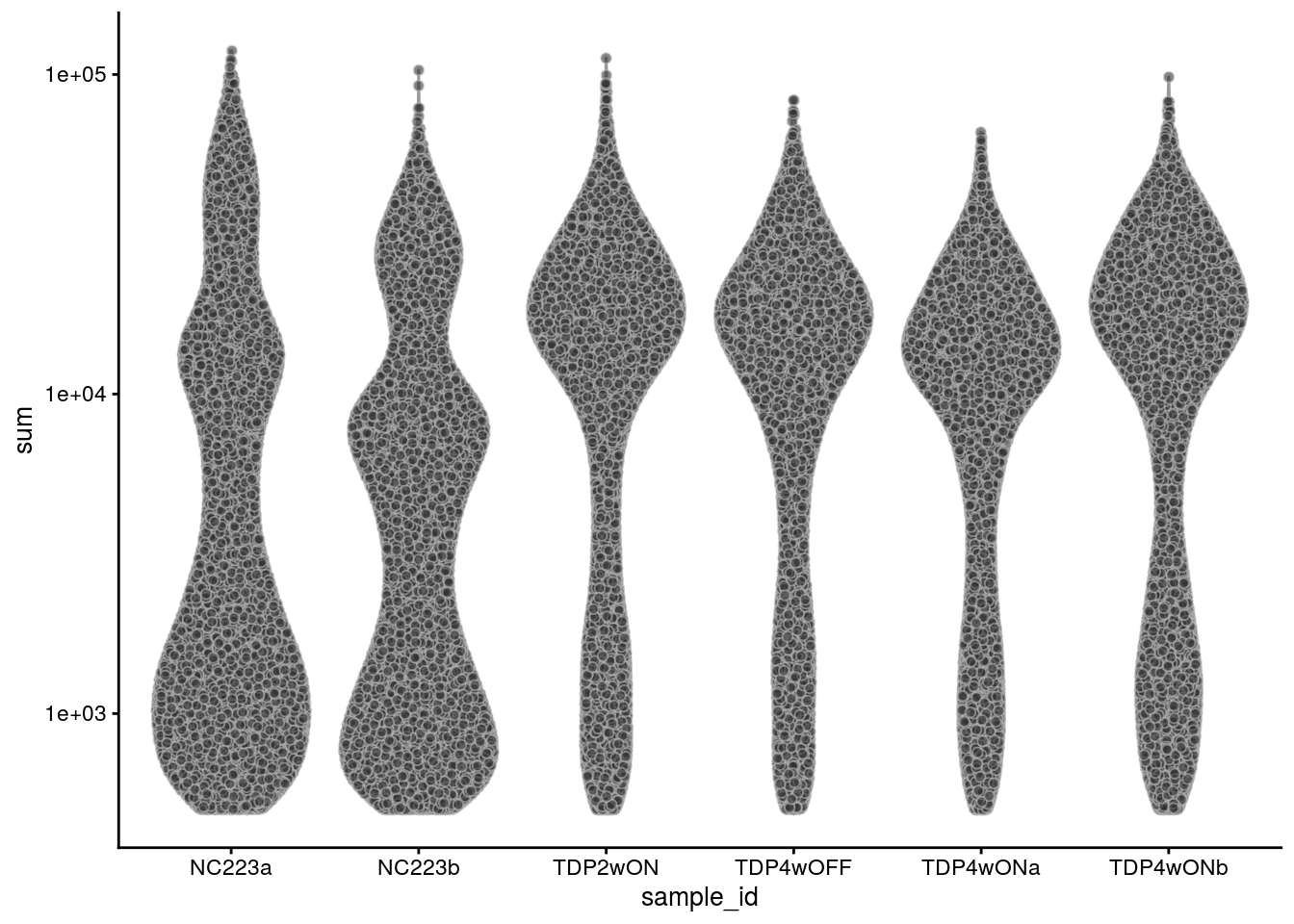

The number of counts per cell:
plotColData(sce, x = "sample_id", y = "sum") + scale_y_log10()

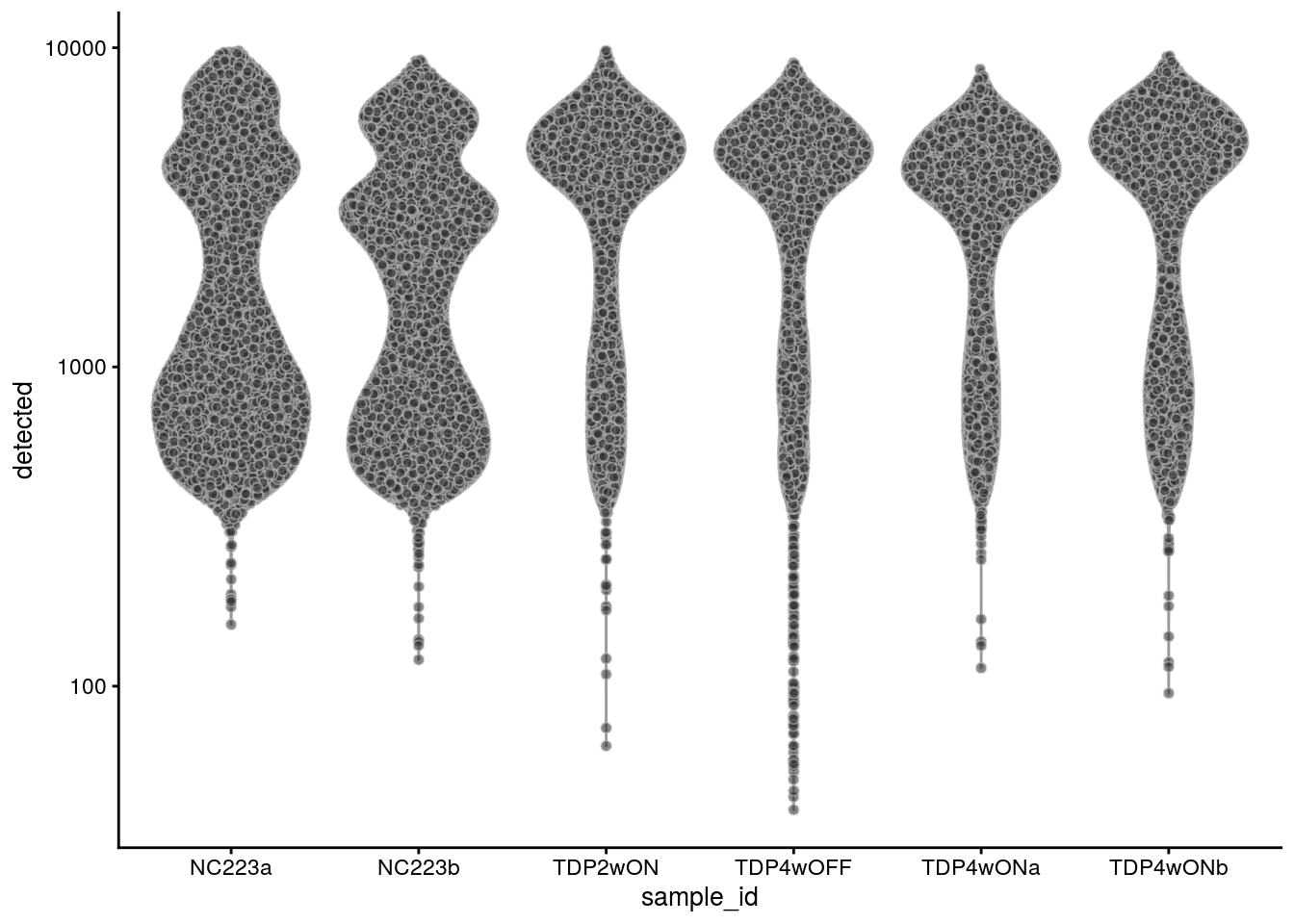

The number of genes:
plotColData(sce, x = "sample_id", y = "detected") + scale_y_log10()

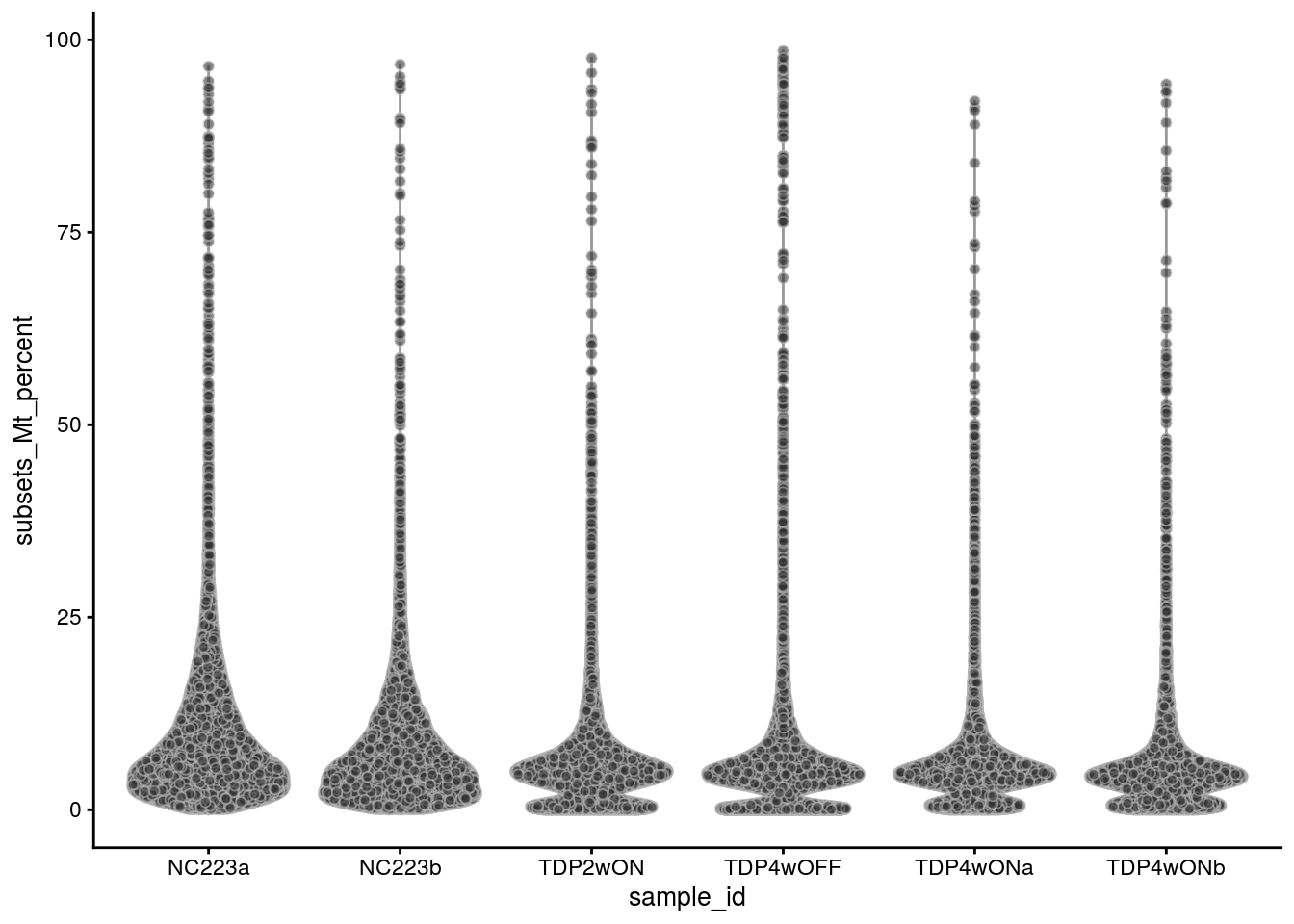

The percentage of mitochondrial genes:
plotColData(sce, x = "sample_id", y = "subsets_Mt_percent")

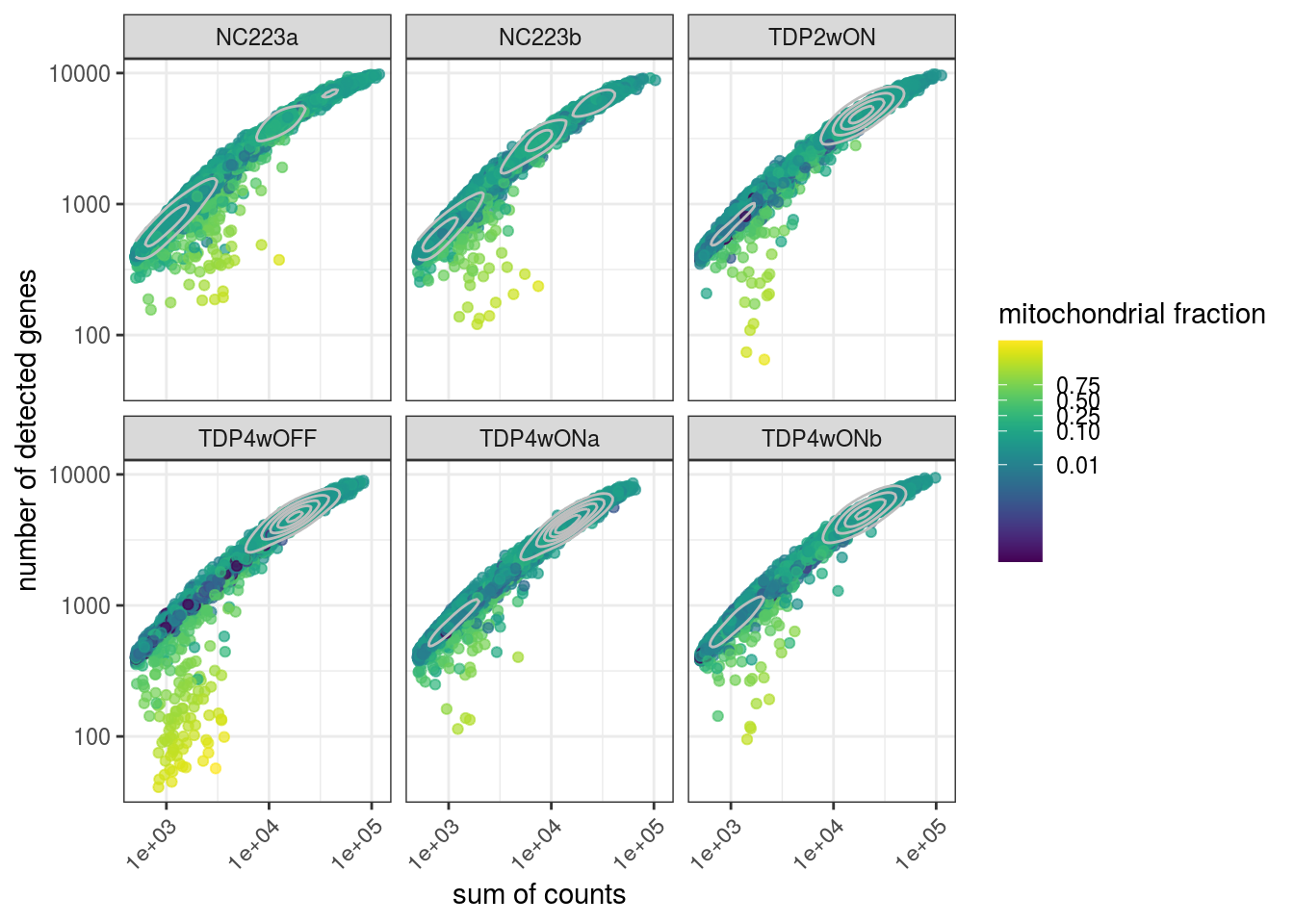

We plot the total number of counts against the number of detected genes and color by the fraction of mitochondrial genes:
cd <- data.frame(colData(sce))
ggplot(cd, aes(x = sum, y = detected, color = subsets_Mt_fraction)) +
geom_point(alpha = 0.7) +
geom_density_2d(color = "grey", bins = 6) +
scale_x_log10() +
scale_y_log10() +
facet_wrap(~sample_id) +
theme_bw() +
theme(axis.text.x = element_text(angle = 45, hjust = 1)) +
xlab("sum of counts") +
ylab("number of detected genes") +
labs(color = "mitochondrial fraction") +
scale_color_viridis(trans = "logit", breaks = c(0.01, 0.1, 0.25, 0.5, 0.75))

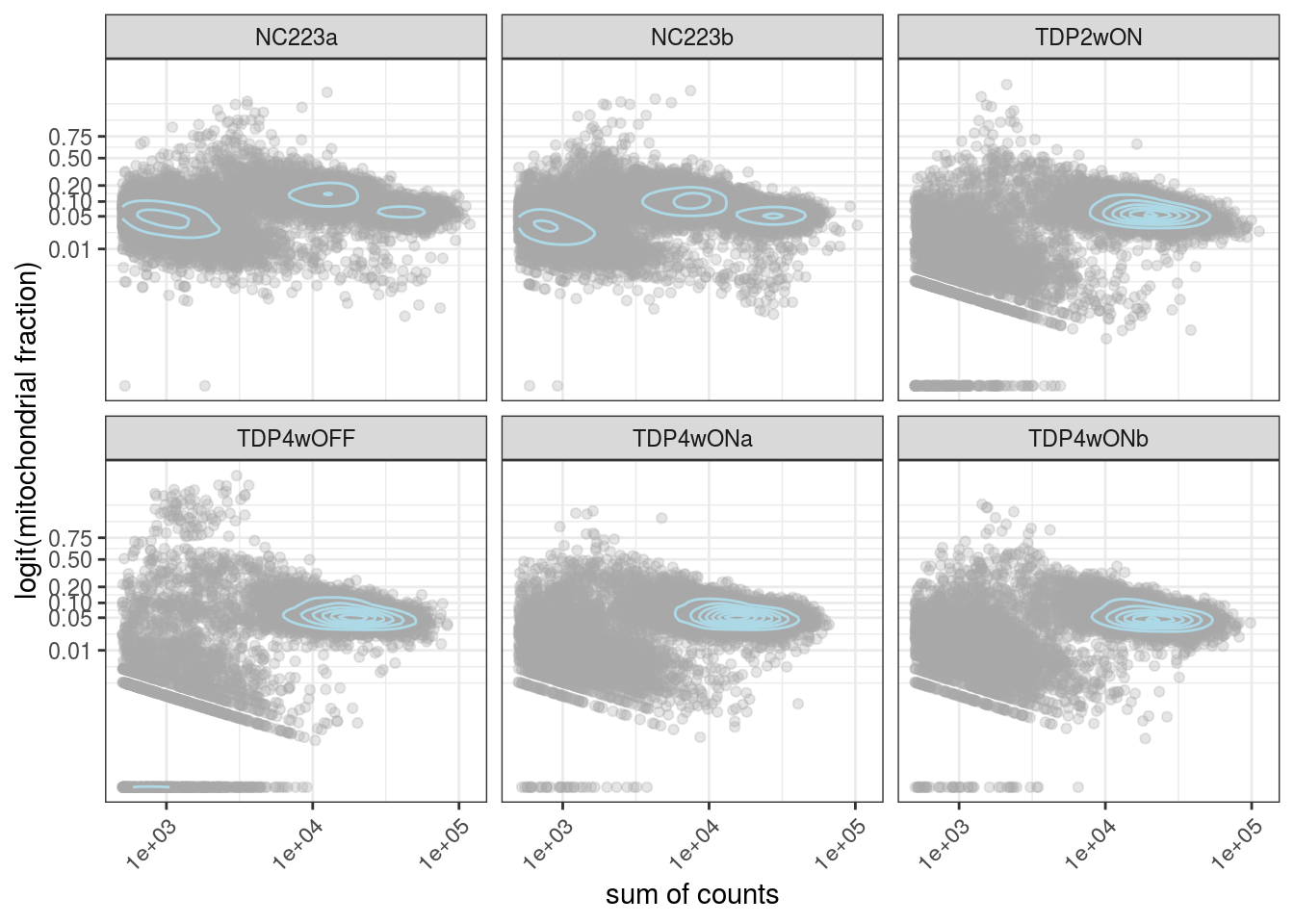

We plot the total number of counts against the mitochondrial content. Well-behaved cells should have many expressed genes and a low fraction of mitochondrial genes. High mitochondrial content indicates empty or damaged cells.
ggplot(cd, aes(x = sum, y = subsets_Mt_fraction)) +
geom_point(color = "darkgrey", alpha = 0.3) +
geom_density_2d(color = "lightblue") +
scale_x_log10() +
scale_y_continuous(trans = 'logit',
breaks = c(0.01, 0.05, 0.1, 0.2, 0.5, 0.75)) +
facet_wrap(~sample_id) +
theme_bw() +
theme(axis.text.x = element_text(angle = 45, hjust = 1)) +
xlab("sum of counts") +
ylab("logit(mitochondrial fraction)")

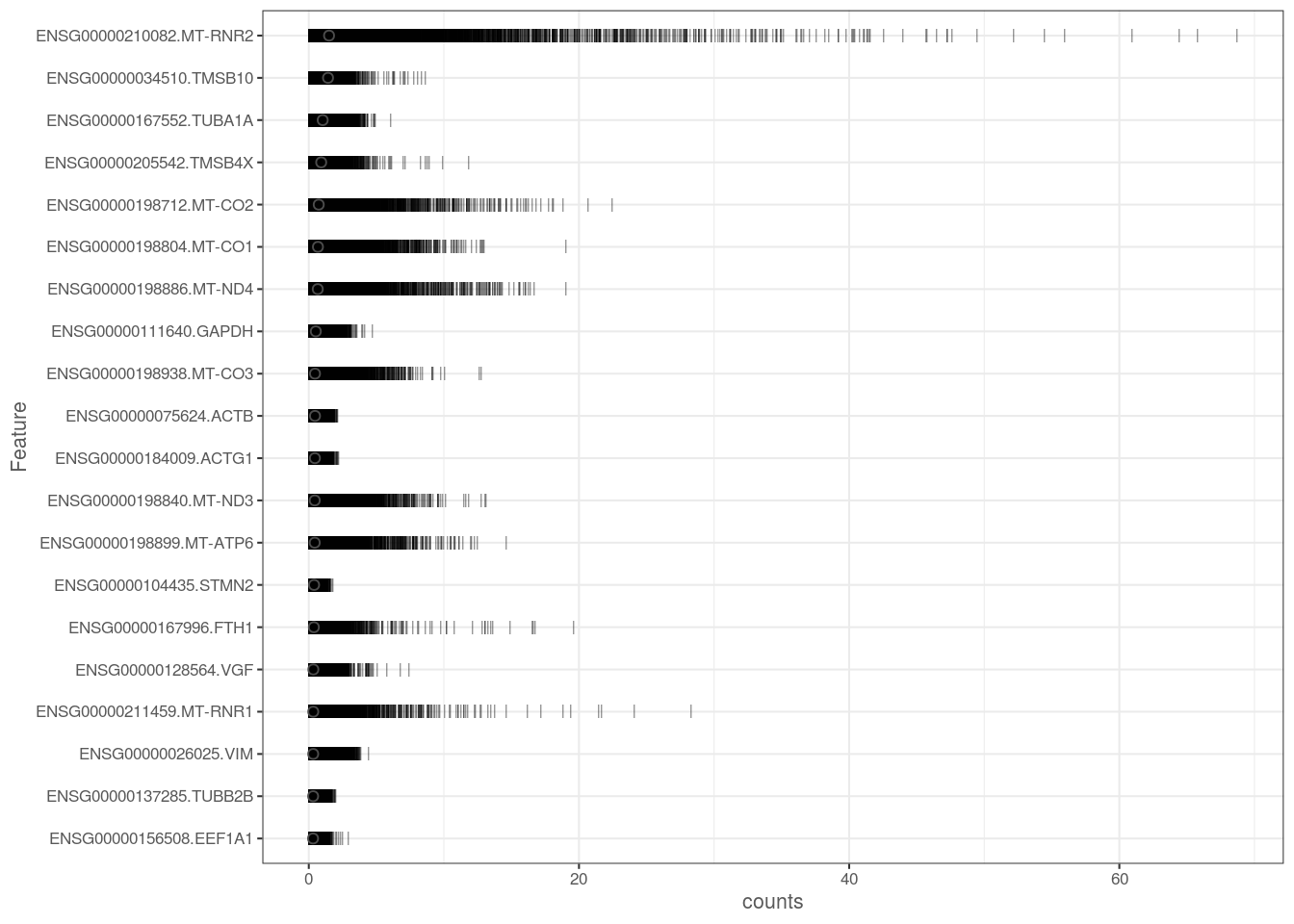

We plot the top 20 genes with highest expression. Mitochondrial genes, actin, ribosomal proteins or MALAT1 are examples of genes that are expected to have very high expression.
plotHighestExprs(sce, n = 20)Warning in sweep(sub_mat, 2, colSums2(exprs_mat), "/", check.margin = FALSE): 'check.margin' is ignored when 'x' is a DelayedArray object or
derivative
Save data to RDS
saveRDS(sce, file.path("output", "sce_TDP_02_quality_control.rds"))
sessionInfo()R version 4.0.0 (2020-04-24)
Platform: x86_64-pc-linux-gnu (64-bit)
Running under: Ubuntu 16.04.6 LTS
Matrix products: default
BLAS: /usr/local/R/R-4.0.0/lib/libRblas.so
LAPACK: /usr/local/R/R-4.0.0/lib/libRlapack.so
locale:
[1] LC_CTYPE=en_US.UTF-8 LC_NUMERIC=C
[3] LC_TIME=en_US.UTF-8 LC_COLLATE=en_US.UTF-8
[5] LC_MONETARY=en_US.UTF-8 LC_MESSAGES=en_US.UTF-8
[7] LC_PAPER=en_US.UTF-8 LC_NAME=C
[9] LC_ADDRESS=C LC_TELEPHONE=C
[11] LC_MEASUREMENT=en_US.UTF-8 LC_IDENTIFICATION=C
attached base packages:
[1] parallel stats4 stats graphics grDevices utils datasets
[8] methods base
other attached packages:
[1] HDF5Array_1.16.1 rhdf5_2.32.2
[3] viridis_0.5.1 viridisLite_0.3.0
[5] scales_1.1.1 scater_1.16.2
[7] ggplot2_3.3.2 SingleCellExperiment_1.10.1
[9] SummarizedExperiment_1.18.1 DelayedArray_0.14.0
[11] matrixStats_0.56.0 Biobase_2.48.0
[13] GenomicRanges_1.40.0 GenomeInfoDb_1.24.2
[15] IRanges_2.22.2 S4Vectors_0.26.1
[17] BiocGenerics_0.34.0 workflowr_1.6.2
loaded via a namespace (and not attached):
[1] BiocSingular_1.4.0 DelayedMatrixStats_1.10.1
[3] GenomeInfoDbData_1.2.3 vipor_0.4.5
[5] yaml_2.2.1 pillar_1.4.6
[7] backports_1.1.9 lattice_0.20-41
[9] glue_1.4.2 beachmat_2.4.0
[11] digest_0.6.25 promises_1.1.1
[13] XVector_0.28.0 colorspace_1.4-1
[15] cowplot_1.0.0 htmltools_0.5.0
[17] httpuv_1.5.4 Matrix_1.2-18
[19] pkgconfig_2.0.3 zlibbioc_1.34.0
[21] purrr_0.3.4 whisker_0.4
[23] later_1.1.0.1 BiocParallel_1.22.0
[25] git2r_0.27.1 tibble_3.0.3
[27] generics_0.0.2 farver_2.0.3
[29] ellipsis_0.3.1 withr_2.2.0
[31] magrittr_1.5 crayon_1.3.4
[33] evaluate_0.14 fs_1.4.2
[35] MASS_7.3-51.6 beeswarm_0.2.3
[37] tools_4.0.0 lifecycle_0.2.0
[39] stringr_1.4.0 Rhdf5lib_1.10.0
[41] munsell_0.5.0 irlba_2.3.3
[43] isoband_0.2.2 compiler_4.0.0
[45] rsvd_1.0.3 rlang_0.4.7
[47] grid_4.0.0 RCurl_1.98-1.2
[49] BiocNeighbors_1.6.0 bitops_1.0-6
[51] labeling_0.3 rmarkdown_2.3
[53] gtable_0.3.0 codetools_0.2-16
[55] R6_2.4.1 gridExtra_2.3
[57] knitr_1.29 dplyr_1.0.2
[59] rprojroot_1.3-2 stringi_1.4.6
[61] ggbeeswarm_0.6.0 Rcpp_1.0.5
[63] vctrs_0.3.4 tidyselect_1.1.0
[65] xfun_0.15
